Boundary layers and sepration

[M!Zare 48037]

Sports balls



Many games involve balls designed to use drag reduction brought about by surface roughness



Many sports balls have some type of surface roughness, such as the seams on baseballs or cricket balls and the fuzz on tennis balls



It is the Reynolds number (not the speed, per se) that determines whether the boundary layer is laminar or turbulent. Thus, the larger the ball, the lower the speed at which a rough surface can be of help in reducing the drag

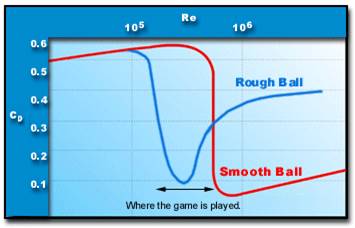

Typically sports ball games that use surface roughness to promote an early transition of the boundary layer from a laminar to a turbulent flow are played over a Reynolds number range that is near the “trough” of the Cd versus Re curve, where drag is lowest

[M!Zare 48037]

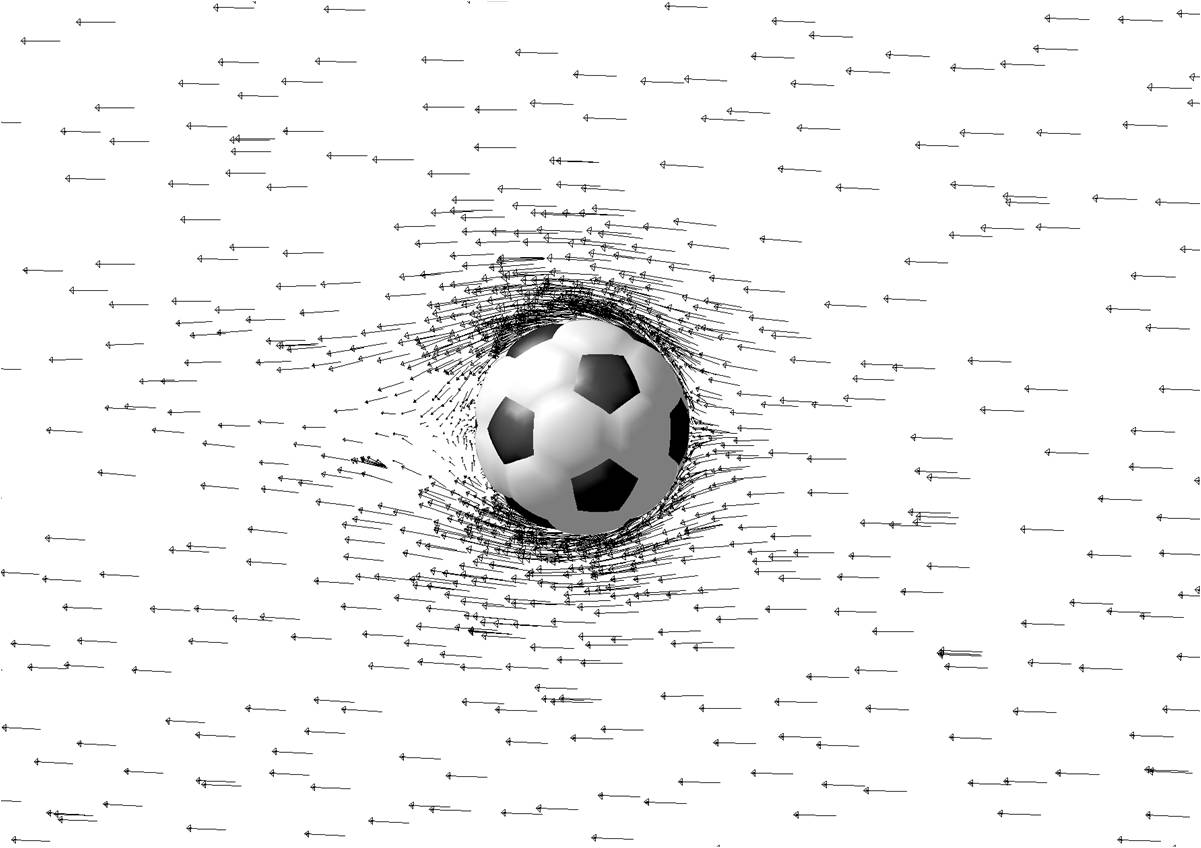

Flow in reference frame relative to the ball



Note that we have been showing flow fields in the reference frame of the object, similar to the flow around the soccer ball shown here



[M!Zare 48037]

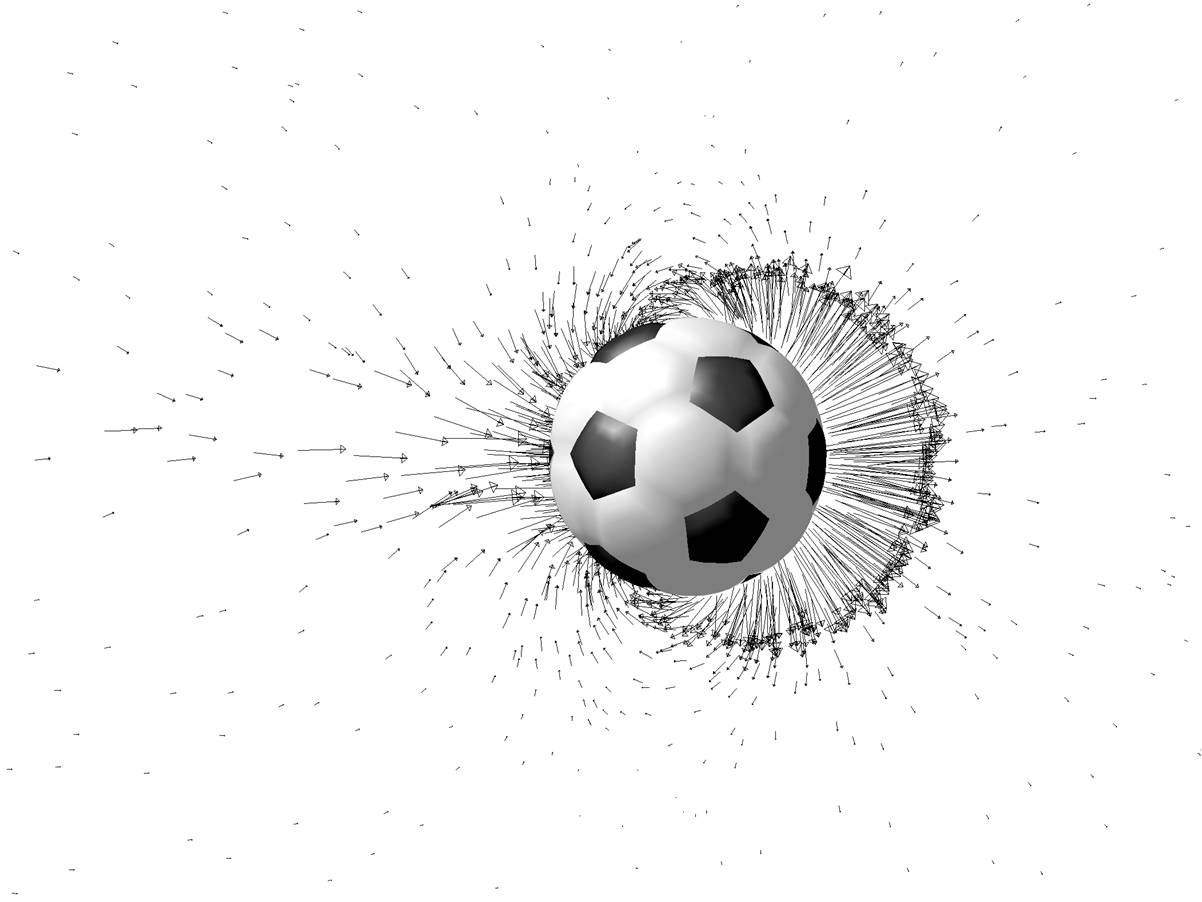

Flow in absolute reference frame



However, one should keep in mind that the flow in the absolute reference frame may look quite different, as shown here



[M!Zare 48037]

Airfoil - effect of angle of attack



The loss in pressure in the separated flow region behind solid bodies causes an imbalance between the upstream and downstream forces, contributing greatly to an increased net drag force



In the case of streamlined airfoils at low angle of attack, separation occurs only at the tip, with minimal losses. As the angle of attack increases, the separation point moves upstream, leading to increased drag



[M!Zare 48037]

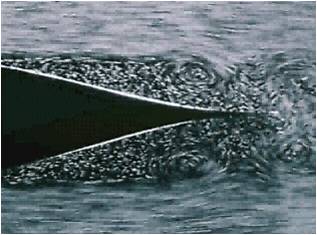

Airfoil - effect of shape



The pressure field is changed by changing the thickness of a streamlined body placed in the flow. The acceleration and deceleration caused by a finite body width creates favorable and unfavorable pressure gradients





When the body is thin, there are only weak pressure gradients and the flow remains attached. As the body is made thicker, the adverse pressure gradient resulting from the deceleration near the rear leads to flow separation, recirculation, and vortex shedding





Focusing in on the rear region of the flow, it is seen that as the body is again reduced in thickness, the separated region disappears as the strengths of the adverse pressure gradient is diminished



[M!Zare 48037]

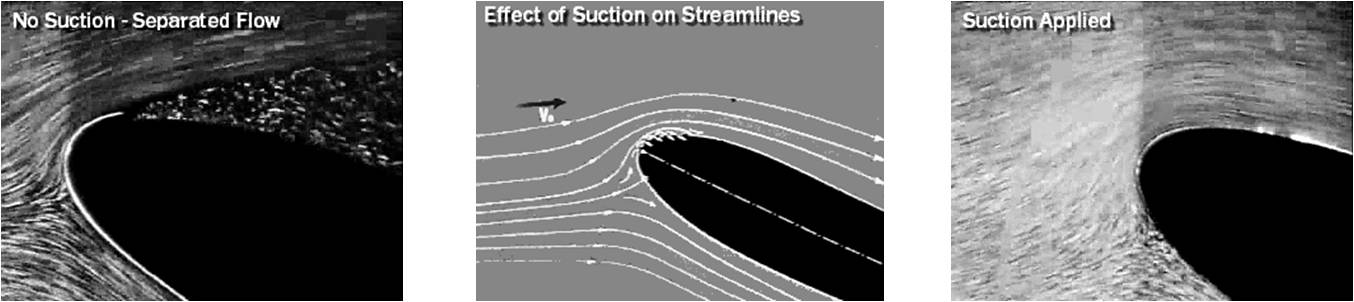

Suction

Just as flow separation can be understood in terms of the combined effects of viscosity and adverse pressure gradients, separated flows can be reattached by the application of a suitable modification to the boundary conditions



In this example, suction is applied to the leading edge of the airfoil at a sharp angle of attack, removing the early separation zone, and moving the separation point much farther downstream



[M!Zare 48037]

Blowing



Separation in external flows, such as the flow past a sudden expansion can be controlled not only by suction but also by blowing



In this video, the region of separated flow is eliminated by the introduction of high momentum fluid at a point near the separation point



This acts to eliminate the adverse pressure gradient by accelerating the fluid close to the boundary, leading to re-attachment of the flow



[M!Zare 48037]

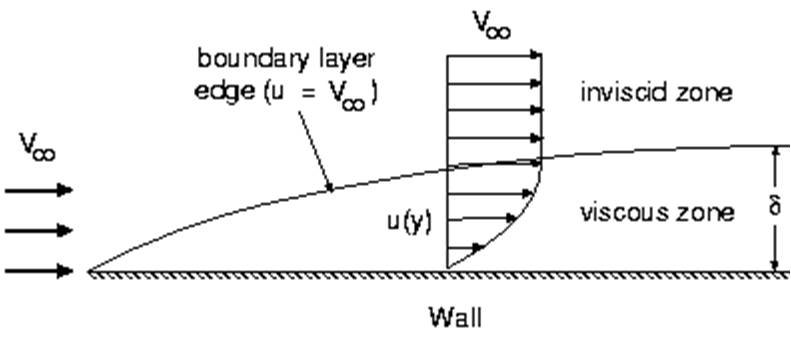

The turbulent boundary layer



In turbulent flow, the boundary layer is defined as the thin region on the surface of a body in which viscous effects are important



The boundary layer allows the fluid to transition from the free stream velocity Ut to a velocity of zero at the wall



The velocity component normal to the surface is much smaller than the velocity parallel to the surface: v



The gradients of the flow across the layer are much greater than the gradients in the flow direction



The boundary layer thickness d is defined as the distance away from the surface where the velocity reaches 99% of the free-stream velocity



[M!Zare 48037]

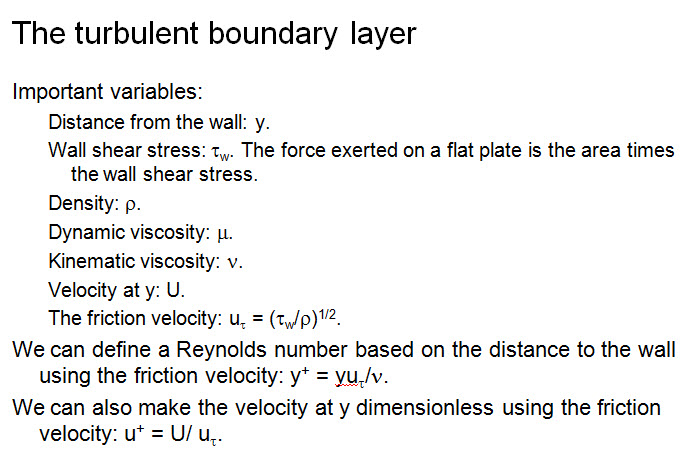

The turbulent boundary layer



[M!Zare 48037]

[M!Zare 48037]

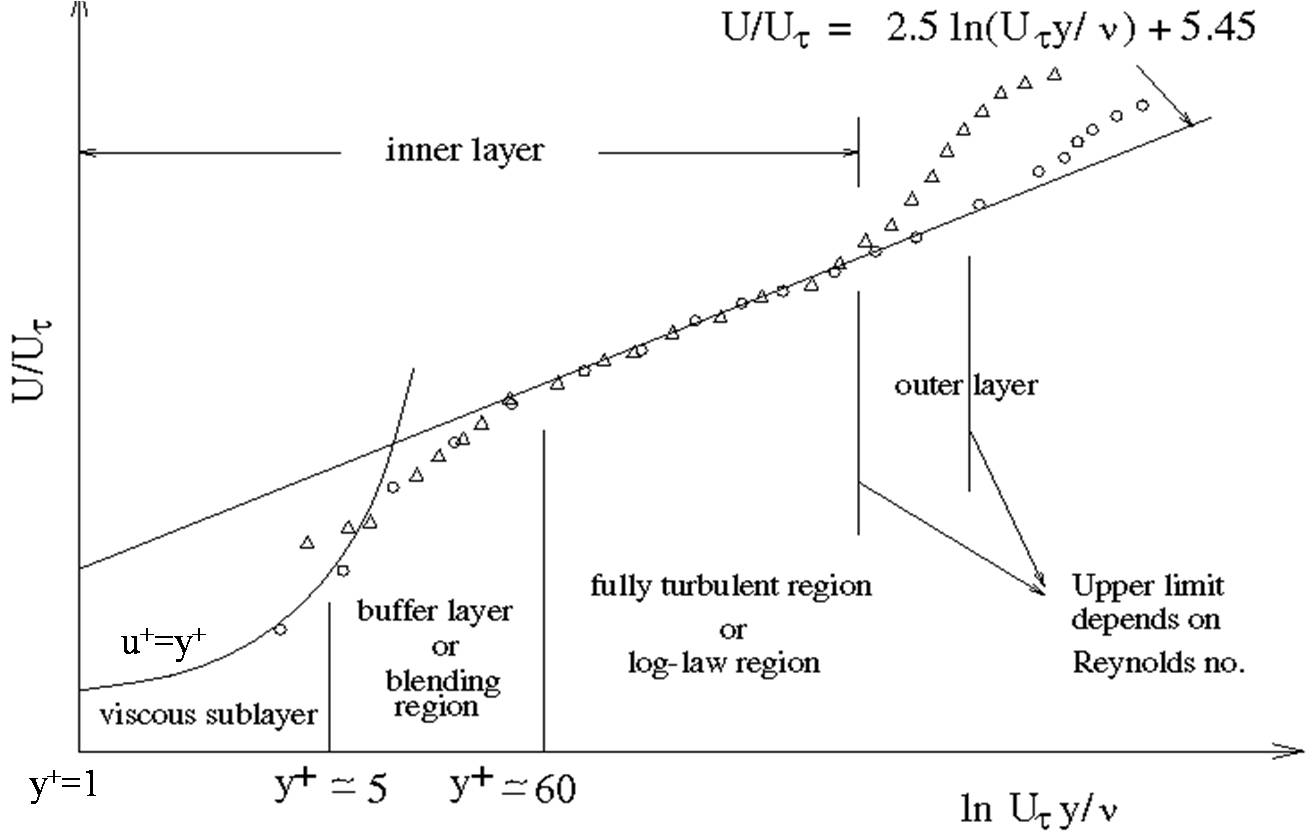

Boundary layer structure



[M!Zare 48037]

Standard wall functions

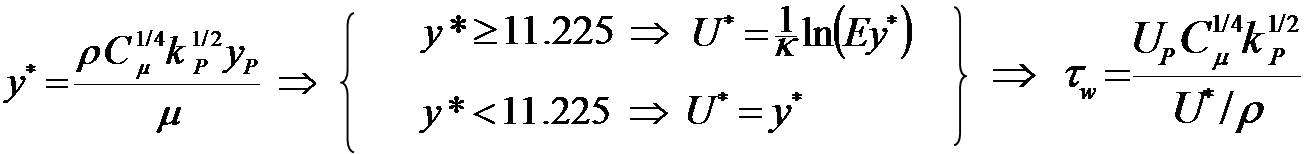

The experimental boundary layer profile can be used to calculate tw. However, this requires y+ for the cell adjacent to the wall to be calculated iteratively



In order to save calculation time, the following explicit set of correlations is usually solved instead





Here

Up is the velocity in the center of the cell adjacent to the wall

yp is the distance between the wall and the cell center

kp is the turbulent kinetic energy in the cell center

k is the von Karman constant (0.42

E is an empirical constant that depends on the roughness of the walls (9.8 for smooth surfaces

[M!Zare 48037]

Near-wall treatment - momentum equations



The objective is to take the effects of the boundary layer correctly into account without having to use a mesh that is so fine that the flow pattern in the layer can be calculated explicitly



Using the no-slip boundary condition at wall, velocities at the nodes at the wall equal those of the wall



The shear stress in the cell adjacent to the wall is calculated using the correlations shown in the previous slide



This allows the first grid point to be placed away from the wall, typically at 50



This approach is called the “standard wall function” approach



The correlations shown in the previous slide are for steady state (“equilibrium”) flow conditions. Improvements, “non-equilibrium wall functions,” are available that can give improved predictions for flows with strong separation and large adverse pressure gradients

[M!Zare 48037]

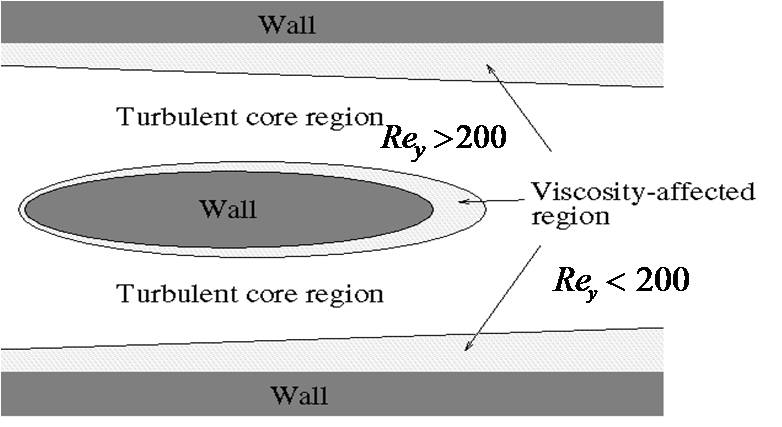

Two-layer zonal model



A disadvantage of the wall-function approach is that it relies on empirical correlations



The two-layer zonal model does not. It is used for low-Re flows or flows with complex near-wall phenomena





Zones distinguished by a wall-distance-based turbulent Reynolds number



The flow pattern in the boundary layer is calculated explicitly



Regular turbulence models are used in the turbulent core region



Only k equation is solved in the viscosity-affected region



e is computed using a correlation for the turbulent length scale



Zoning is dynamic and solution adaptive

[M!Zare 48037]

Near-wall treatment - turbulence



The turbulence structure in the boundary layer is highly anisotropic



e and k require special treatment at the walls



Furthermore, special turbulence models are available for the low Reynolds number region in the boundary layer



These are aptly called “low Reynolds number” models



This is still a very active area of research, and we will not discuss those here in detail

[M!Zare 48037]

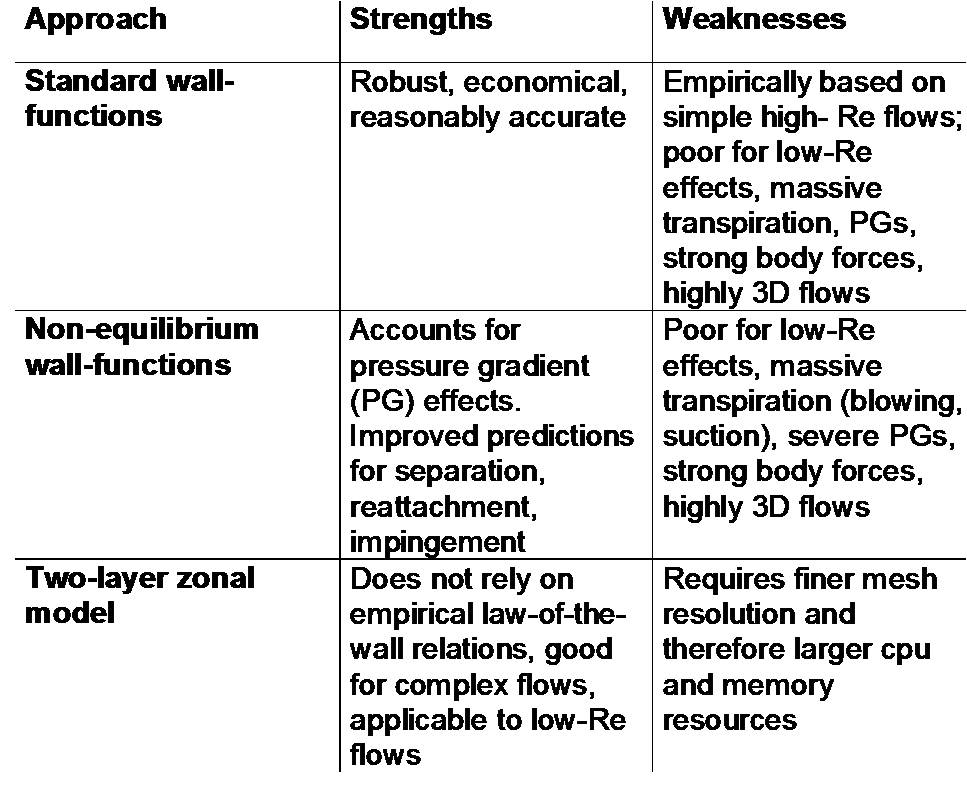

Comparison of near-wall treatments



[M!Zare 48037]

Computational grid guidelines





First grid point in log-law region



Gradual expansion in cell size away from the wall



Better to use stretched quad/hex cells for economy



First grid point at y+ = 1



At least ten grid points within buffer and sublayers



Better to use stretched quad/hex cells for economy

[M!Zare 48037]

Obtaining accurate solutions



When very accurate (say 2%) drag, lift, or torque predictions are required, the boundary layer and flow separation require accurate modeling



The following practices will improve prediction accuracy:

Use boundary layer meshes consisting of quads, hexes, or prisms. Avoid using pyramid or tetrahedral cells immediately adjacent to the wall



After converging the solution, use the surface integral reporting option to check if y+ is in the right range, and if not refine the grid using adaption.

For best predictions use the two-layer zonal model and completely resolve the flow in the whole boundary layer



[M!Zare 48037]

Summary



The concept of the boundary layer was introduced



Boundary layers require special treatment in the CFD model



The influence of pressure gradient on boundary layer attachment showed that an adverse pressure gradient gives rise to flow separation



For accurate drag, lift, and torque predictions, the boundary layer and flow separation need to be modeled accurately



This requires the use of:

A suitable grid.

A suitable turbulence model.

Higher order discretization.

Deep convergence using the force to be predicted as a convergence monitor

[M!Zare 48037]

Summary



The concept of the boundary layer was introduced



Boundary layers require special treatment in the CFD model



The influence of pressure gradient on boundary layer attachment showed that an adverse pressure gradient gives rise to flow separation



For accurate drag, lift, and torque predictions, the boundary layer and flow separation need to be modeled accurately



This requires the use of

A suitable grid

A suitable turbulence model

Higher order discretization

Deep convergence using the force to be predicted as a convergence monitor
