Boundary layers and sepration

[M!Zare 48,037]

درود بر تمام دوستان

این تاپیک در حقیقت یک کلاس آموزشی نیز هست.مدرس این کلاس استاد:André Bakker

پس مباحث مطرح شده که بصورت خلاصه است را مطالعه فرموده و سوالات خویش را نیز مطرح فرمایید.

[M!Zare 48,037]

Overview



•Drag.

•The boundary-layer concept.

•Laminar boundary-layers.

•Turbulent boundary-layers.

•Flow separation.

[M!Zare 48,037]

The drag force



The surrounding fluid exerts pressure forces and viscous forces on an object



The components of the resultant force acting on the object immersed in the fluid are the drag force and the lift force



The drag force acts in the direction of the motion of the fluid relative to the object



The lift force acts normal to the flow direction



Both are influenced by the size and shape of the object and the Reynolds number of the flow

[M!Zare 48,037]

Drag prediction



The drag force is due to the pressure and shear forces acting on the surface of the object



The tangential shear stresses acting on the object produce friction drag (or viscous drag). Friction drag is dominant in flow past a flat plate and is given by the surface shear stress times the area







Pressure or form drag results from variations in the the normal pressure around the object



In order to predict the drag on an object correctly, we need to correctly predict the pressure field and the surface shear stress



This, in turn, requires correct treatment and prediction of boundary layers and flow separation

We will discuss both in this lecture

[M!Zare 48,037]

Viscous boundary layer



An originally laminar flow is affected by the presence of the walls



Flow over flat plate is visualized by introducing bubbles that follow the local fluid velocity





Most of the flow is unaffected by the presence of the plate



However, in the region closest to the wall, the velocity decreases to zero



The flow away from the walls can be treated as inviscid, and can sometimes be approximated as potential flow



The region near the wall where the viscous forces are of the same order as the inertial forces is termed the boundary layer



The distance over which the viscous forces have an effect is termed the boundary layer thickness



The thickness is a function of the ratio between the inertial forces and the viscous forces, i.e. the Reynolds number. As Re increases, the thickness decreases







[M!Zare 48,037]

Moving plate boundary layer





An impulsively started plate in a stagnant fluid



When the wall in contact with the still fluid suddenly starts to move, the layers of fluid close to the wall are dragged along while the layers farther away from the wall move with a lower velocity



The viscous layer develops as a result of the no-slip boundary condition at the wall

[M!Zare 48,037]

Effect of viscosity

The layers closer to the wall start moving right away due to the no-slip boundary condition.



The layers farther away from the wall start moving later.The distance from the wall that is affected by the motion is also called the viscous diffusion length. This distance increases as time goes on



The experiment shown on the left is performed with a higher viscosity fluid (100 mPa.s). On the right, a lower viscosity fluid (10 mPa.s) is shown



[M!Zare 48,037]

Viscous boundary layer thickness



Exact equations for the velocity profile in the viscous boundary layer were derived by Stokes in 1881



Start with the Navier-Stokes equation





Derive exact solution for the velocity profile



erf is the error function



The boundary layer thickness can be approximated by

[M!Zare 48,037]

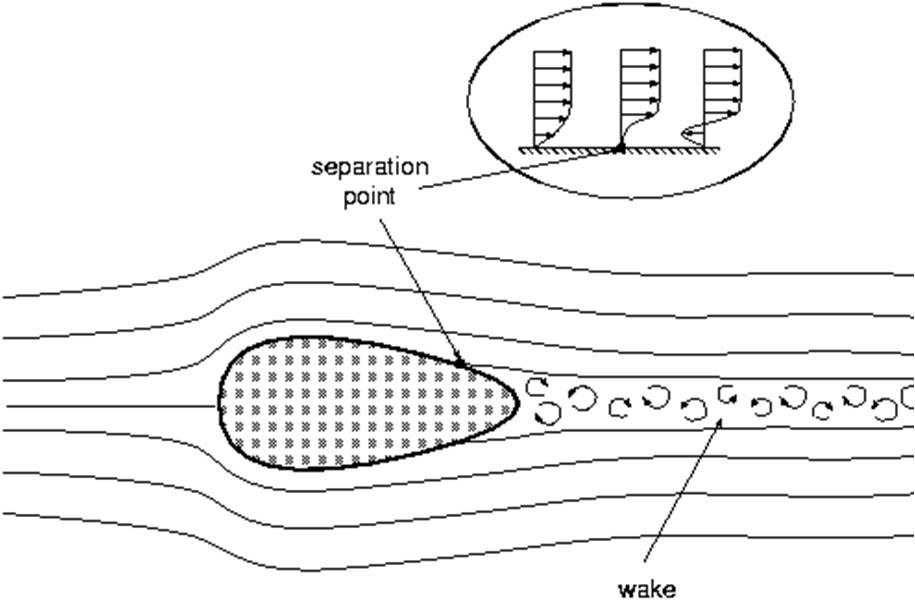

Flow separation



Flow separation occurs when



the velocity at the wall is zero or negative and an inflection point exists in the velocity profile



and a positive or adverse pressure gradient occurs in the direction of flow



[M!Zare 48,037]

Separation at sharp corners



Corners, sharp turns and high angles of attack all represent sharply decelerating flow situations where the loss in energy in the boundary layer ends up leading to separation



Here we see how the boundary layer flow is unable to follow the turn in the sharp corner (which would require a very rapid acceleration), causing separation at the edge and recirculation in the aft region of the backward facing step



[M!Zare 48,037]

Flow around a truck



Flow over non-streamlined bodies such as trucks leads to considerable drag due to recirculation and separation zones



A recirculation zone is clear on the back of the cab, and another one around the edge of the trailer box



The addition of air shields to the cab roof ahead of the trailer helps organize the flow around the trailer and minimize losses, reducing drag by up to 10-15%



[M!Zare 48,037]

Flow separation in a diffuser with a large angle



[M!Zare 48,037]

Inviscid flow around a cylinder



The origins of the flow separation from a surface are associated with the pressure gradients impressed on the boundary layer by the external flow



The image shows the predictions of inviscid, irrotational flow around a cylinder, with the arrows representing velocity and the color map representing pressure





The flow decelerates and stagnates upstream of the cylinder (high pressure zone



It then accelerates to the top of the cylinder (lowest pressure



Next it must decelerate against a high pressure at the rear stagnation point

[M!Zare 48,037]

Drag on a smooth circular cylinder



The drag coefficient is defined as follows



[M!Zare 48,037]

Drag on a smooth circular cylinder

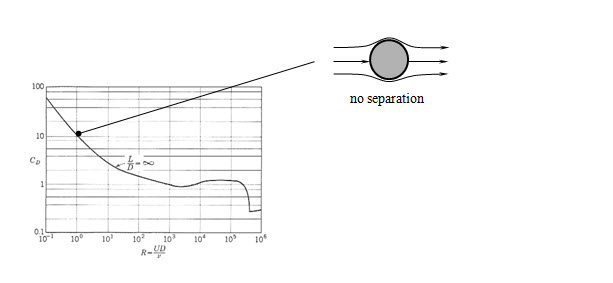

At low Reynolds numbers (Re





The delayed separation reduces the pressure drop. Thus as effective way to reduce the pressure drag is to roughen the surface accelerating the transition to turbulent boundary layer. An example is the way golf balls are dimpled to decrease drag and increase flight range



[M!Zare 48,037]

Drag on a smooth circular cylinder



At moderate Reynolds numbers (1



[M!Zare 48,037]

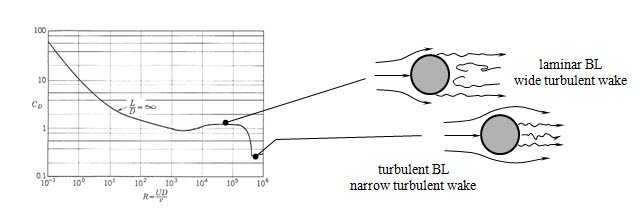

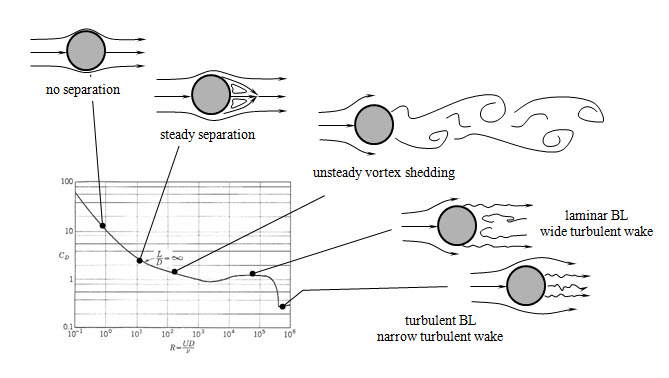

Drag on a smooth circular cylinder



At higher Reynolds numbers (10^3



As the Reynolds number increases, the boundary layer transitions to turbulent, delaying separation and resulting in a sudden decrease in the drag coefficient



[M!Zare 48,037]

Separation - adverse pressure gradients



Separation of the boundary layers occurs whenever the flow tries to decelerate quickly, that is whenever the outer pressure gradient is negative, or the pressure gradient is positive, sometimes referred to as an adverse pressure gradient



In the case of the tennis ball, the flow initially decelerates on the upstream side of the ball, while the local pressure increases in accord with Bernoulli’s equation





Near the top of the ball the local external pressure decreases and the flow should accelerate as the potential energy of the pressure field is converted to kinetic energy



However, because of viscous losses, not all kinetic energy is recovered and the flow reverses around the separation point

[M!Zare 48,037]

Turbulent boundary layer



Increased momentum transport due to turbulence from the free stream flow to the flow near the wall makes turbulent boundary layers more resistant to flow separation



The photographs depict the flow over a strongly curved surface, where there exists a strong adverse (positive) pressure gradient



The boundary layer has a high momentum deficit



In the case where the boundary layer is laminar, insufficient momentum exchange takes, the flow is unable to adjust to the increasing pressure and separates from the surface



In case where the flow is turbulent, the increased transport of momentum (due to the Reynolds stresses) from the free-stream to the wall increases the streamwise momentum in the boundary layer. This allows the flow to overcome the adverse pressure gradient. It eventually does separate nevertheless, but much further downstream



[M!Zare 48,037]

Tripping the boundary layer



Here we see how the addition of a trip wire to induce transition to turbulence changes the separation line further to the rear of the sphere, reducing the size of the wake and thus drastically diminishing overall drag





This well-known fact can be taken advantage of in a number of applications, such as dimples in golf balls and turbulence generation devices on airfoils
