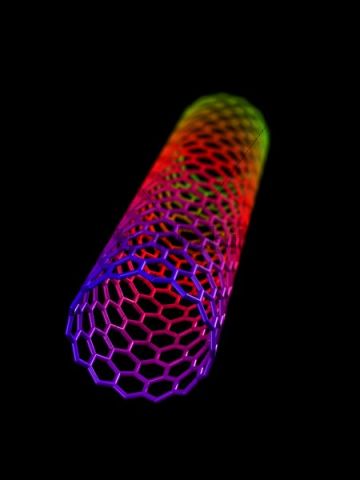

Doctor_Shovan مهمان اشتراک گذاری ارسال شده در 6 تیر، ۱۳۸۹ 3D model of three types of single-walled carbon nanotubes نقل قول لینک به دیدگاه
Doctor_Shovan مهمان اشتراک گذاری ارسال شده در 6 تیر، ۱۳۸۹ In a carbon nanotube-based photodiode, electrons (blue) and holes (red) - the positively charged areas where electrons used to be before becoming excited - release their excess energy to efficiently create more electron-hole pairs when light is shined on the device نقل قول لینک به دیدگاه
Doctor_Shovan مهمان اشتراک گذاری ارسال شده در 6 تیر، ۱۳۸۹ یک «جنگل» از نانو لوله های کربنی! این تصویرمیکروسکوپی با استفاده از *****ی گرفته شده است که با توجه به برآمدگی ها و تو رفتگی های قسمتهای مختلف نمونه, باعث ایجاد سایه روشن در تصویر میشود نقل قول لینک به دیدگاه
Doctor_Shovan مهمان اشتراک گذاری ارسال شده در 6 تیر، ۱۳۸۹ Nanocomposite paper uses carbon nanotubes (black section) to create ultra-thin energy storage batteries and supercapacitors. نقل قول لینک به دیدگاه
Doctor_Shovan مهمان اشتراک گذاری ارسال شده در 6 تیر، ۱۳۸۹ Conceptual diagram of single-walled carbon nanotube (SWCNT) (A) and multiwalled carbon nanotube (MWCNT) (B) delivery systems showing typical dimensions of length, width, and separation distance between graphene layers in MWCNTs نقل قول لینک به دیدگاه
Doctor_Shovan مهمان اشتراک گذاری ارسال شده در 6 تیر، ۱۳۸۹ High-resolution transmission electron microscope images. (a) "Raw" laser vaporization soot. (b) Single-wall nanotube bundles after reflux. © High-purity (>99 wt%) single-wall carbon nanotubes. (d) Nanotube "tape." نقل قول لینک به دیدگاه
